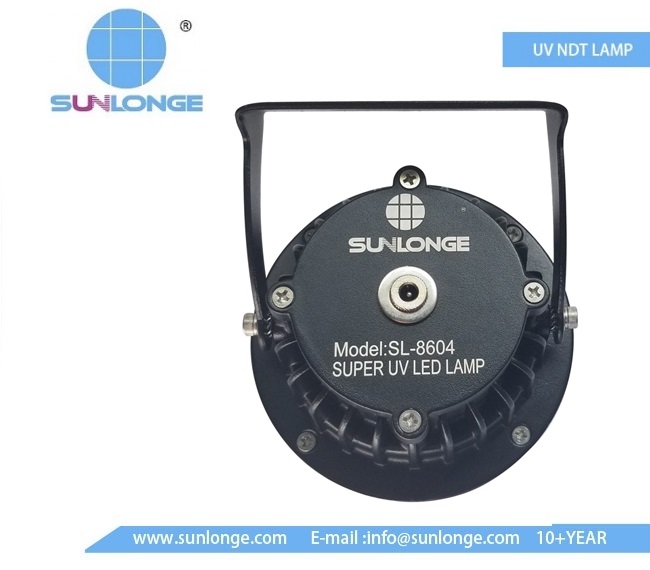

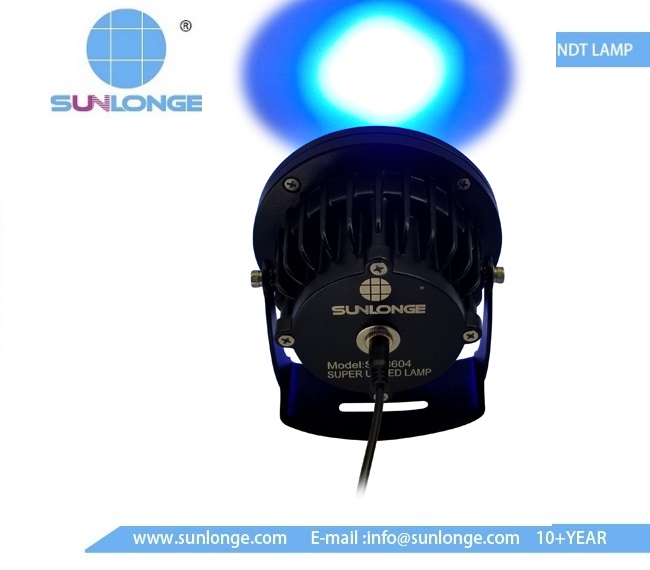

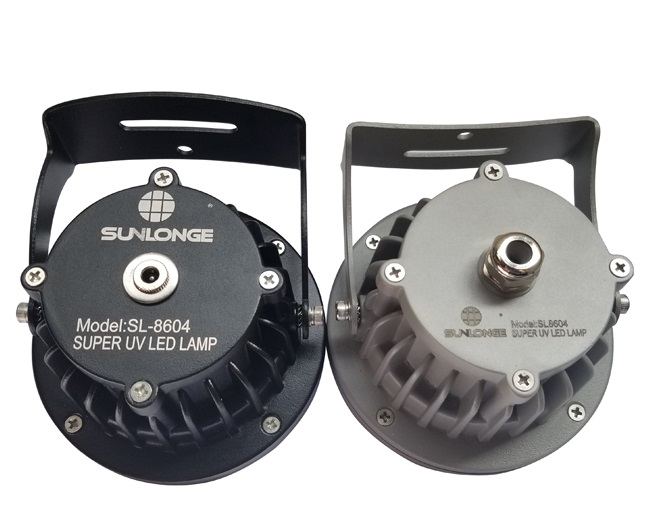

SUPER UV LED LAMP SL8604 Series

SL8604 SUPER UV LED LAMP Series
SL8604 SUPER UV LED LAMP Series Seriesadapts the most advanced LED cold light source technology,they uses Nichia 5 Watt 365nm of NCSU033B(T)  and  Optical lenses.The LED life is 30,000 hours.

UV-A Intensity  is 21000UW/cm2  in 38cm Distance. Ergonomic design reduces the operator stress, 4x SPOT 365 nm uv led with reflection  mirrow universal module design for AC and DC operation simple operation

SPECIFICATIONS:
Model: AC SUPER  UV LED LAMP SL8604- Series;SL8604-Hight Version;SL8604-Standard Version;SL8604-Aerospace RRES90061 Abbreviation:SL8604-H;SL8604-S;SL8604-AR
Peak-Wavelength:365-370NM;
UV Intensity:4000-21000UW/cm2 at 15inch(380mm)- -See the list;
Low visible light emission :less than 2 foot-candles (22 lux)

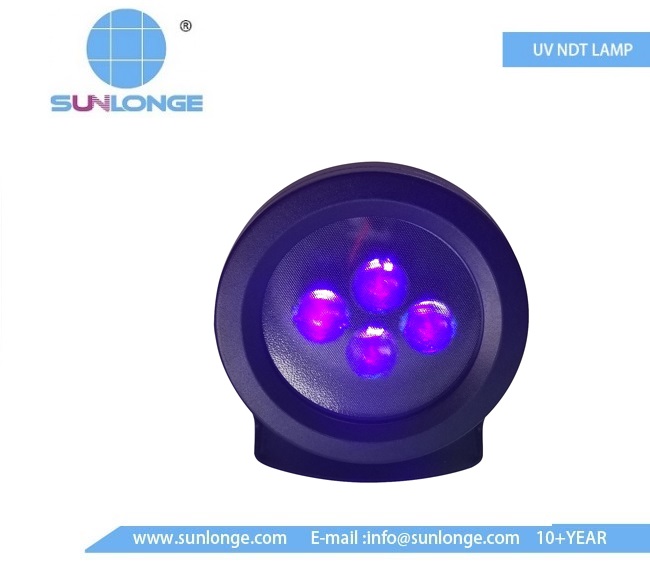

Number of UV LEDs: 4 x 5W 365NM UV LED with lens, average LED life is 30,000 hours
Power supply: 100-240V  AC; AC Power Code: 3 M  length.
Irradiated Area in 38cm Distance:150*180mm
Stability of UV Intensity: > 90%
Product Size: 128*145*78mm   ; WEIGHT :760g without  accessories

Waterproof : IP67



SL8604 Series:SL8604AC-Hight Version;SL8604-Standard Version;SL8604-Aerospace RRES90061 Abbreviation:SL8604-H;SL8604AC-S;SL8604-AR,(We master the core technology,

We can adjust the intensity of the UV according to customer requirements)

Model	SL8604-Aerospace RRES90061	SL8604-Standard     Version	SL8604-Hight          Version
Number of UV LEDs	4 x 5W 365NM UV LED	The  Smae	The Same
UV Intensity at 15inch(380mm)	4000-5000uw/cm2	13000uw/cm2	21000uw/cm2
Visible light emission	< 0.5 FC(5 lux)   with white light filters Meets ASTM E3022 and  RRES 90061	< 2 FC(20 lux) with black light filters	< 2 FC(20 lux) with black light filters
Irradiated Area in 38cm Distance	190*260mm	136*180mm	130*160mm
Power supply	100-240V  AC; AC Power Code: 3 M  length	The Same	The Same
Suitable for industry	All Aeronautics NDT	Except Aeronautics NDT	Except Aeronautics NDT

Attention to:SL8604-Aerospace RRES90061 Meets Rolls-Royce RRES 90061 Requirements

ASTM E1417, ASTM E1444, ASTM E 709, ASTM E2297, ASTM E3022 compliant

Meets ASTM UV-A intensity and wavelength specifications for FPI and MPI.

FEATURES:

1. 5W 365NM NICHIA True 365 nm wavelength UV light;

2. Less than 2 FC  Candles of white Light;

3.Instant On/Off, no warm up or cooling down time;

4. No filter or bulbs to replace; Mercury free;

5. 100% solid state cold ensures working properly in strong magnetic field.

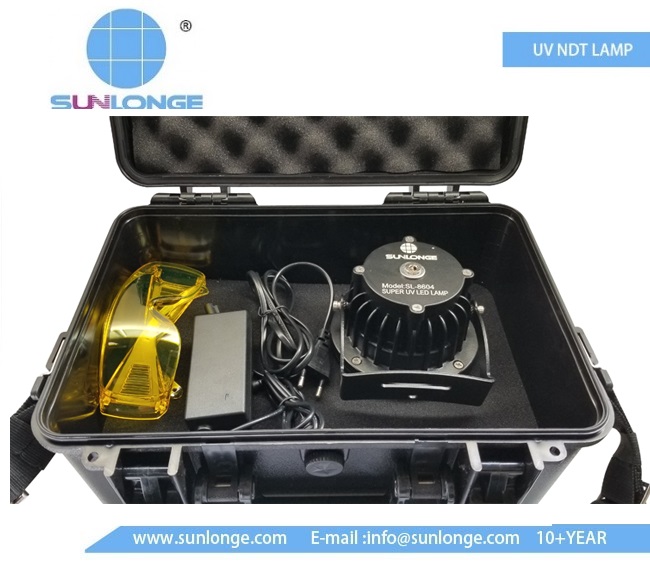

STANDARD PACKAGE INCLUDING:

 AC SUPER  UV LED LAMP SL8604 carry case;

OPTIONAL ACCESSORIES:

Spare UV Filter  Glasses ( orange or yellow); Optical lenses ABS protection case with form inside

Application:

Penetration testing, fluorescence detection;Biopolymers, fluorescence observation

Refrigerant leak detection;Engine oil leak detection

Criminal Investigation: fingerprints, blood observed

Fluorescence observation of ore;Detection of oil cleaning
