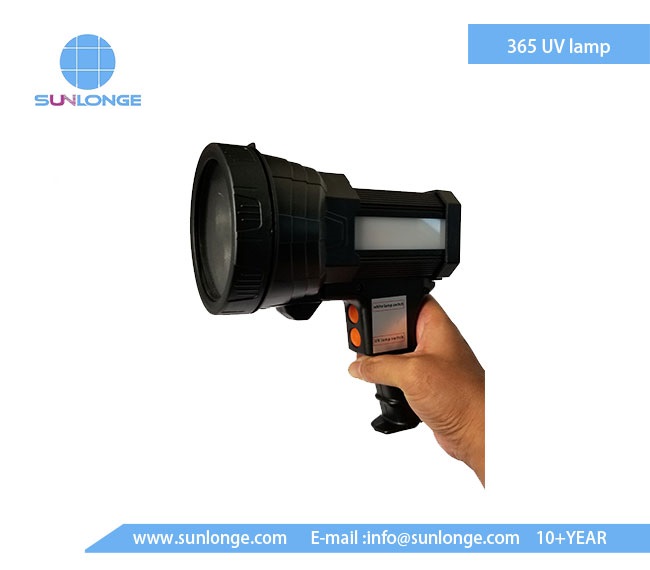

SL8906-UB hand held multi-wavelength inspection lamp

SL8906-UB inspection lamp is with 6 pcs powerful LED, with 2 different wavelength combination,3 pcs 365NM UV light, 3 pcs 455NM blue light (you can choose different wavelength combination:365NM,395NM,455NM,525NM,595NM,625NM,6000K), white light LED on side for lighting. In real application, a lamp with multi-wavelength can better meet the test demand. According to our full experience in this field, a lamp with two wavelength is a better option. According to the customer requirement and demand from market, we developed the SL8906 series to meet different test requirement.

SPECIFICATIONS:

SL8906-UG hand held multi-wavelength inspection lamp parameter.

Model	SL8906-UB	SL8904-BG	Remark
LED NO and Spe	3 pcs 5W 365NM and 3 pcs 455NM LED	3 pcs 5W 455NM and 3 pcs 525NM LED	Customize   according to customer demand
	365NM,395NM,455NM,525NM,595NM,625NM,6000K,   Two different wavelength combination.
Side light	6pcs white light LED
luminance（30cm）	28600uw/cm2-365NM 13500LX-455NM	13500LX-455NM 40000LX-525NM
Irradiance（MM）	○220MM—365NM; ○180MM—455NM	○180MM—525NM; ○220MM—595NM
Switch mode	1 switch for side light，the other for the inspection lamp.
Lifespan	30000H
Power	Lithium battery，4H running time for inspection lamp. Side light   exceeds 10H.
Size and weight	ABS + Aluminum alloy，180 * 190 * 106mm;  Net：   0.68KG  180 * 190 * 106mm;   净重： 0.68KG

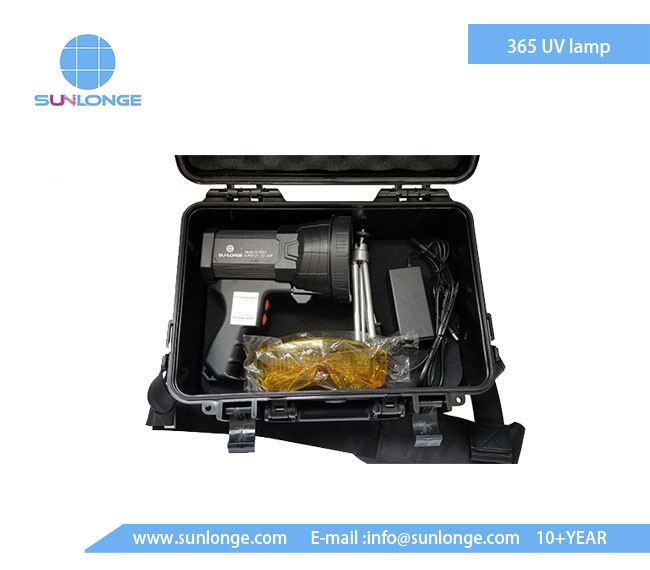

Accessory	Tripod，protective   glasses

Features:

1.SL8906-UB multi-function inspection lamp is with 6 pcs powerful LED, with 2 different wavelength combination,3 pcs 365NM UV light, 3 pcs 455 blue light. (you can choose different wavelength combination: 365NM,395NM,455NM,525NM,595NM,625NM,6000K), side lighting function as well.

 2. SL8906-UB multi-function inspection lamp, with 2 different wavelength combination, can meet different inspection demand from clients and test the defect and flaw as well.

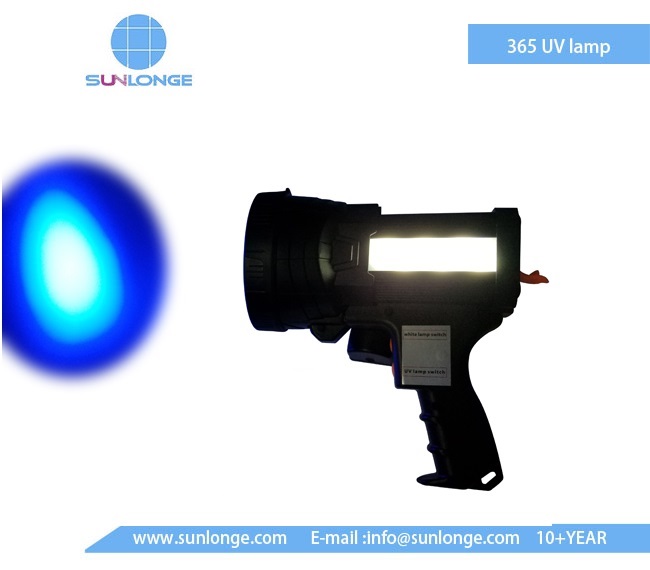

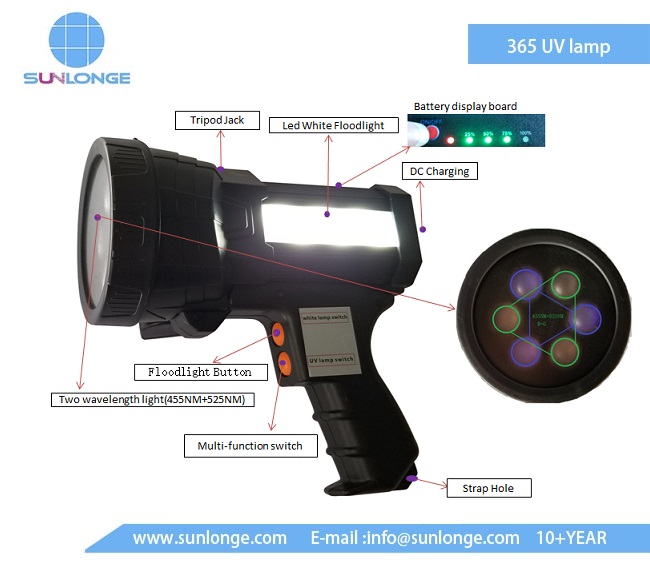

3.With while light LED on side for lighting, the SL8906-GB lamp is with 2 separate switches, 1 for side light, the other for inspection lamp (ON-525NM-6000K-Off)

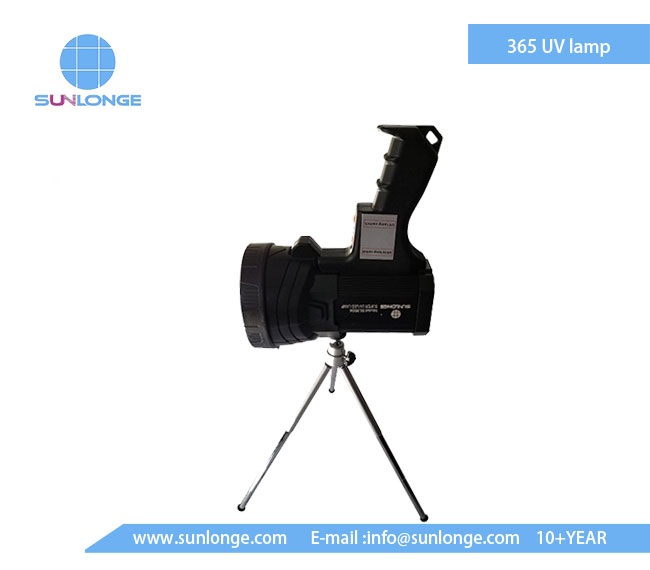

4. Tripod can be provided for special request, free from hands, easy operation in different application.

5. Unique mechanical cooling system can help cool down the lamp quickly, maintaining the optimal wavelength output in long time running

6. We can customize the different inspection lamps according to customer demand, with our optical lens technology.

Observable fluorescent wavelength:

Model	Lamp Colour	The peak wavelength	Wavelength range	Typical Output	Safety glasses	Typical applications
SL8906-U	UV	365NM	360-370	310MW	Orange Red	General searching， Body fluids ，Fingerprinte   Bruising ，Flourescent dyes ,powders,stams and markes
SL8906-V	Purple	395NM	390-400	400MW	Orange Yellow	Searching for the enhancement of skin injuries,i.e.abrasions   and bruises
SL8906-B	Bule	455NM	450-460	480MW	Orange Yellow	General searching， Body fluids;Fibres,Basic Yellow40 Cyanoacrylate
SL8906-C	Cyan	500NM	490-500	100LM	Orange Red	Ninhydrine,OFO   and Superglue(treated fingerprints)and Body fluids
SL8906-G	Green	525NM	520-530	100LM	Orange Red	Ninhydrine   and OFO (treated fingerprints)and Body fluids
SL8906-A	Amber	595NM	590-600	80LM	Red	Ninhydrine(treated fingerprints)
SL8906-R	Red	625NM	620-630	100LM	Red	Ninhydrine(treated   fingerprints),Hair
SL8906-W	White	6000K	4000-6000	100LM		General Searching(foot prints,hair   fibre);Ninhydrne(treated fingerprints



SL8906 series Lamp Abbreviation and code:

SL-8906XX

365NM ultraviolet Abbreviation–U; 395NM violet Abbreviation—V;

455NM blue light Abbreviation–B;  525NM green light Abbreviation–G;

595NM amber light Abbreviation–A; 625NM red lightAbbreviation-R;

6000k white light  Abbreviation–W
