SLM6300-8NM Portable Multi-channel Light Source,Multi led forensic light Source;Portable Multi-channel Light Source,Multi led forensic light Source

LM6300-8NM Portable Multi-channel Forensic Light Source,Multi led forensic light Source;Portable Multi-channel Light Source,Multi led forensic light Source

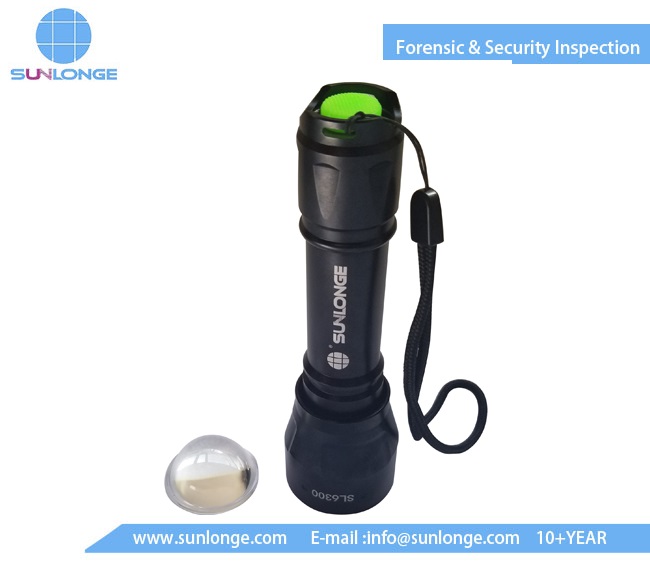

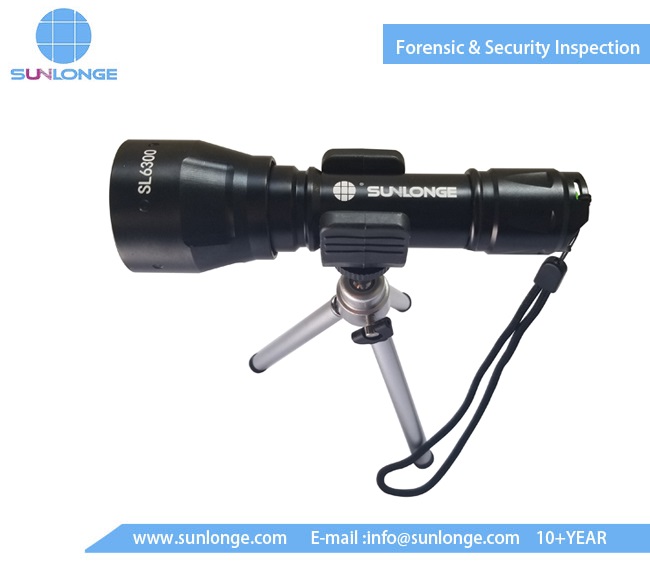

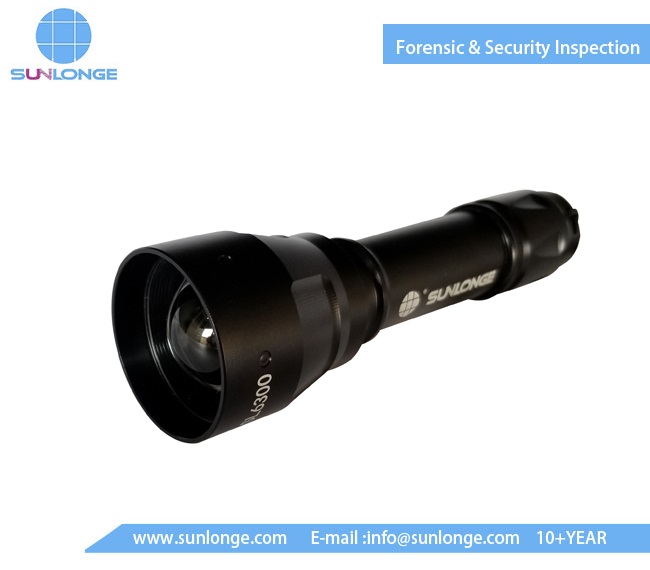

SLM6300-8NM  Portable Multi-channel Forensic Light Source is adopted the most advanced technology of high-power UV LED irradiance chips ,black-anodized aluminum flashlight body. A full-spectrum light source, it provides single-wavelength illumination in UV-A, blue, green, cyan, amber, red and white light. Offers super-bright visible LED optical output and ultra-high intensity UV-A LED performance. Ideal for crime-scene investigation, gathering potential evidence and forensic laboratory work.



Specification:

Mod:SLM6300-8NM

1. Size: 150 x 44MM;  Weight: 160g

2. Multi-channels: 365NM,395NM,455NM,505NM,530NM,590NM,627NM,4000K

3. Battery: 3.7V, 18650 Lithium battery, Continuous working : 2h

4. 8 LED lights, 8 batteries, 1 charger,3  pcs  glasses, , 1 Professional  toolbox.

Observable fluorescent wavelength:

Model	Lamp Colour	The peak wavelength	Wavelength range	Typical Output	Safety glasses	Typical applications
SL6300-U	UV	365NM	360-370	310MW	Orange Red	General searching， Body fluids ，Fingerprinte   Bruising ，Flourescent dyes ,powders,stams and markes
SL6300-V	Purple	395NM	390-400	400MW	Orange Yellow	Searching for the enhancement of skin   injuries,i.e.abrasions and bruises
SL6300-B	Bule	455NM	450-460	480MW	Orange Yellow	General searching， Body fluids;Fibres,Basic Yellow40 Cyanoacrylate
SL86300-C	Cyan	505NM	500-510	100LM	Orange Red	Ninhydrine,OFO   and Superglue(treated fingerprints)and Body fluids
SL6300-G	Green	525NM	520-530	100LM	Orange Red	Ninhydrine   and OFO (treated fingerprints)and Body fluids
SL6300-A	Amber	595NM	590-600	80LM	Red	Ninhydrine(treated fingerprints)
SL6300-R	Red	625NM	620-630	100LM	Red	Ninhydrine(treated   fingerprints),Hair
SL6300-W	White	6000K	4000-6000	100LM		General Searching(foot prints,hair   fibre);Ninhydrne(treated fingerprints



Features:

1. Small, light weight, portable;

2. High purity, strong orientation;

3. Flare uniformity: = 85%;

4. Illumination intensity: 30000uW-250LM @ 35cm;

5. Beam diameter: 16cm @ 35cm

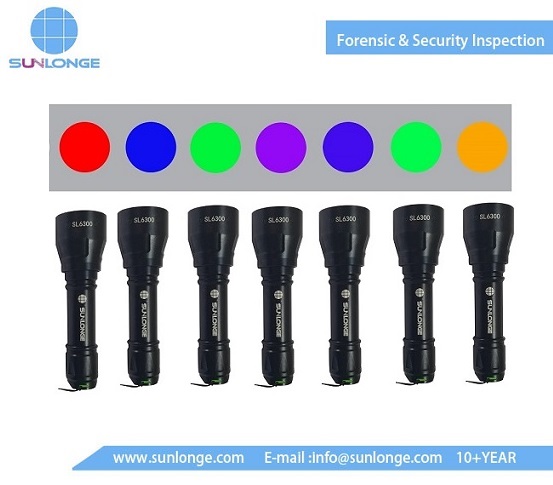

6. Each torch has an independent band light, 8 torches can be satisfied of common requirements of light source.

7. Complete accessories, easy to use;

8. Split instruction design, integrative package, convenient for crime scene using and transportation



SL6300-XX series Lamp Abbreviation and code:

SL-6300XX

365NM ultraviolet Abbreviation–U; 395NM violet Abbreviation—V;

455NM blue light Abbreviation–B;  525NM green light Abbreviation–G;

595NM amber light Abbreviation–A; 625NM red lightAbbreviation-R;

6000k white light  Abbreviation–W



Application:

Biological stains and latent fingerprints;Blood and other bodily fluids

Bruises/bite marks/pattern wounds;Hair and fibers

Grease, oil and other petroleum-based stains;Questionable documents
