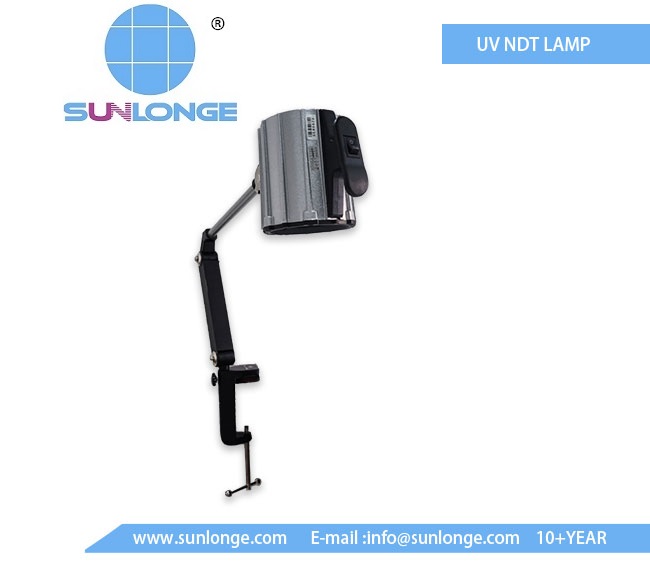

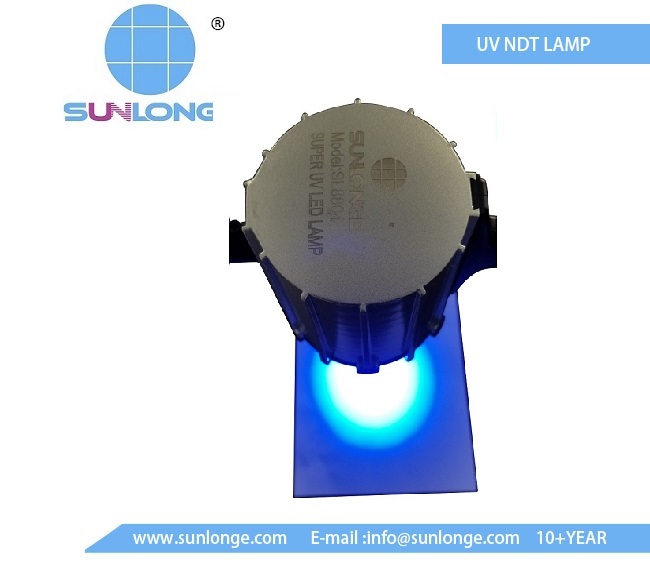

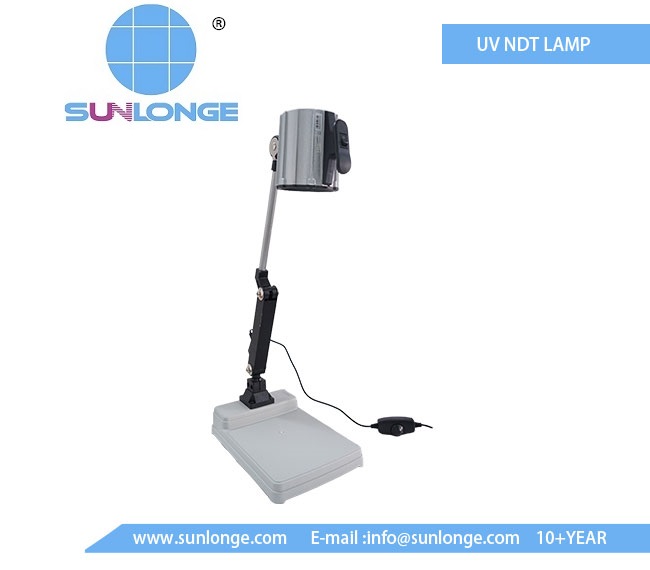

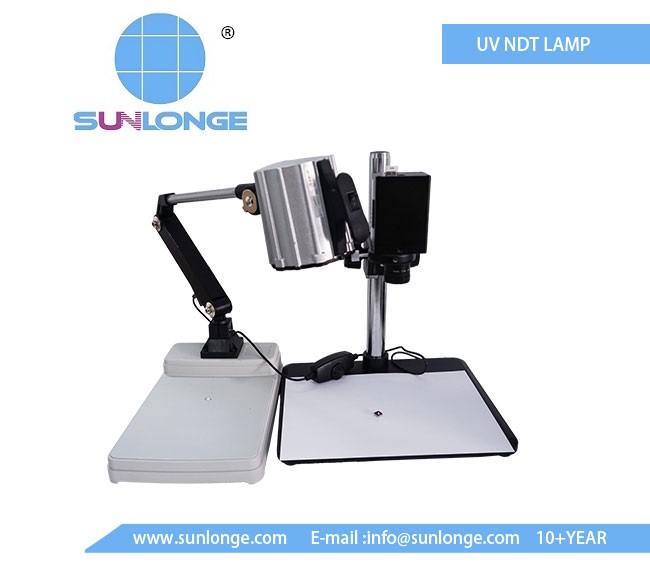

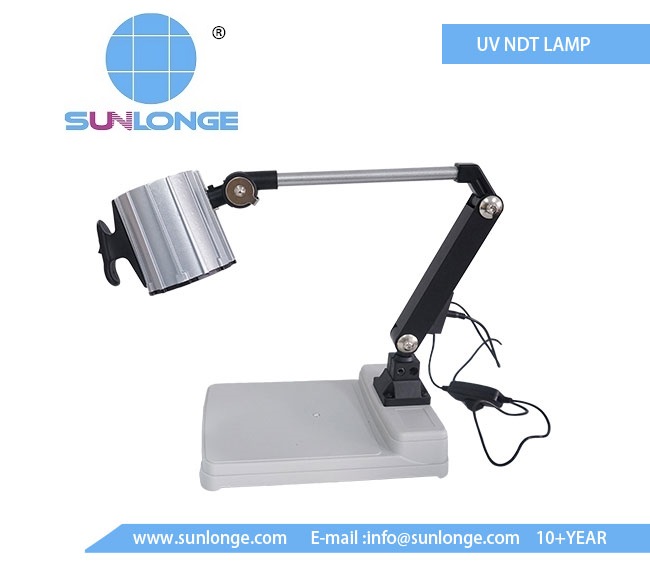

SL8806-UB desktop inspection lamp is 2 different wavelength combination,3 pcs 365NM UV light, 3 pcs 455NM blue light (you can choose different wavelength combination:365NM,395NM,455NM,525NM,595NM,625NM,6000K), white light LED on side for lighting. In real application, a lamp with multi-wavelength can better meet the test demand. According to our full experience in this field, a lamp with two wavelength is a better option. According to the customer requirement and demand from market, we developed the SL8906 series to meet different test requirement.
SPECIFICATIONS:
SL8806-UG hand held multi-wavelength inspection lamp parameter.
|
Model |
SL8806-UB |
SL8806-BG |
Remark |
|
LED NO and Spe |
3 pcs 5W 365NM and 3 pcs 455NM LED |
3 pcs 5W 455NM and 3 pcs 525NM LED |
Customize according to customer demand |
|
365NM,395NM,455NM,525NM,595NM,625NM,6000K, Two different wavelength combination. |
|||
|
luminance（30cm） |
28600uw/cm2-365NM 13500LX-455NM |
13500LX-455NM 40000LX-525NM |
|
|
Irradiance（MM） |
○220MM—365NM; ○180MM—455NM |
○180MM—525NM; ○220MM—595NM |
|
|
Switch mode |
the switch for 2pcs the inspection lamp.. |
||
|
Lifespan |
30000H |
||
|
Power |
ABS + Aluminum alloy，116 * 108mm; Net： 0.96KG |
||
|
Size and weight |
ABS + Aluminum alloy，116 * 108mm; Net： 0.96KG |
||
|
Accessory |
Protective glasses |
||
Features:
1.SL8806-UB multi-function inspection lamp is 2 different wavelength combination,3 pcs 365NM UV light, 3 pcs 455 blue light. (you can choose different wavelength combination: 365NM,395NM,455NM,525NM,595NM,625NM,6000K), side lighting function as well.
2. SL8806-UB multi-function inspection lamp, with 2 different wavelength combination, can meet different inspection demand from clients and test the defect and flaw as well.
3. Unique mechanical cooling system can help cool down the lamp quickly, maintaining the optimal wavelength output in long time running
4. We can customize the different inspection lamps according to customer demand, with our optical lens technology.
Observable fluorescent wavelength:
|
Model |
Lamp Colour |
The peak wavelength |
Wavelength range |
Typical Output |
Safety glasses |
Typical applications |
|
SL8806-U |
UV |
365NM |
360-370 |
310MW |
Orange Red |
General searching， Body fluids ，Fingerprinte Bruising ，Flourescent dyes ,powders,stams and markes |
|
SL8806-V |
Purple |
395NM |
390-400 |
400MW |
Orange Yellow |
Searching for the enhancement of skin injuries,i.e.abrasions and bruises |
|
SL8806-B |
Bule |
455NM |
450-460 |
480MW |
Orange Yellow |
General searching， Body fluids;Fibres,Basic Yellow40 Cyanoacrylate |
|
SL8806-C |
Cyan |
500NM |
490-500 |
100LM |
Orange Red |
Ninhydrine,OFO and Superglue(treated fingerprints)and Body fluids |
|
SL8806-G |
Green |
525NM |
520-530 |
100LM |
Orange Red |
Ninhydrine and OFO (treated fingerprints)and Body fluids |
|
SL8806-A |
Amber |
595NM |
590-600 |
80LM |
Red |
Ninhydrine(treated fingerprints) |
|
SL8806-R |
Red |
625NM |
620-630 |
100LM |
Red |
Ninhydrine(treated fingerprints),Hair |
|
SL8806-W |
White |
6000K |
4000-6000 |
100LM |
General Searching(foot prints,hair fibre);Ninhydrne(treated fingerprints |
SL8806 series Lamp Abbreviation and code:
SL-8806XX
365NM ultraviolet Abbreviation–U; 395NM violet Abbreviation—V;
455NM blue light Abbreviation–B; 525NM green light Abbreviation–G;
595NM amber light Abbreviation–A; 625NM red lightAbbreviation-R;
6000k white light Abbreviation–W
