SUPER UV LED LAMP SL8803 Series

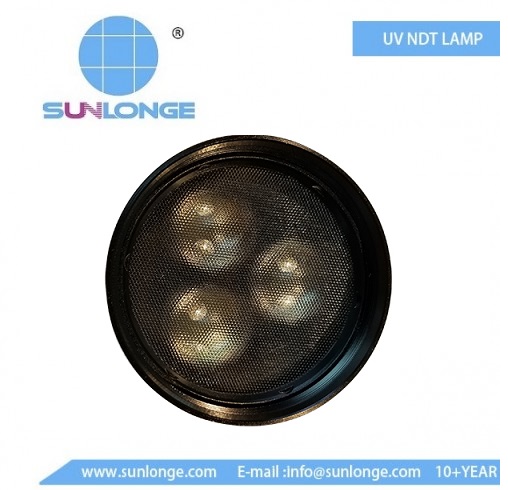

Super UV LED LAMP SL8803 Series adapts the most advanced LED cold light source technology,they uses 3PCS Nichia 5 Watt 365nm of NCSU033B(T) and Optical lenses.
Their broad-beam configuration provides an extremely wide coverage area, while a compact head design allows access into areas inaccessible to larger UV inspection lamps.
SPECIFICATIONS:
Model: SUPER UV LED LAMP SL8803 Series,;SL8803-Standard Version; SL8803-Aerospace RRES90061 ; Abbreviation:SL8803-S;SL8803-AR
Peak-Wavelength:365-370NM;
Number of UV LEDs: 3 x 5W 365NM UV LED with lens, average LED life is 30,000 hours
UV Intensity:4000-16000 UW/cm2 at 15inch(380mm) -See the list;
Low visible light emission :less than 2 foot-candles (22 lux)
Power supply: 100-240 universal chargers AC/50HZ; Polymer battery pack DC.
Irradiated Area in 38cm Distance:160mm (Diameter)
Stability of UV Intensity: > 90%
Product Size: 73*193 mm ; WEIGHT :400g without accessories
SL8803 Series:SL8803-S and SL8803-AR
(because We master the core technology,We can provide different UV Intensity UV light,They can meet different customer and industry)
|
Model |
SL8803-S |
SL8803-AR |
|
Number of UV LEDs |
3 x 5W 365NM UV LED |
|
|
UV Intensity at 15inch(380mm) |
16000uw/cm2 |
4000uw/cm2 |
|
Visible light emission |
Less than 2 FC |
< 0.5 FC(5 lux) with white light filters Meets ASTM E3022 and RRES 90061 |
|
Irradiated Area in 38cm Distance |
130 mm(Diameter) |
160 mm(Diameter) |
|
Power supply |
Polymer battery pack DC |
|
|
Suitable for industry |
All Aeronautics NDT |
Except Aeronautics NDT |
Attention to: SL8803-Aerospace RRES90061 Meets Rolls-Royce RRES 90061 Requirements ASTM E1417,ASTM E1444, ASTM E 709,
ASTM E2297, ASTM E3022 compliant Meets ASTM UV-A intensity and wavelength specifications for FPI and MPI.
FEATURES:
1. 5W 365NM NICHIA True 365 nm wavelength UV light;
2. Less than 2 FC Candles of white Light;
3 .Meets ASTM UV-A intensity and wavelength specifications for FPI and MPI；
4. Certificate of compliance for both output and wavelength measurements is supplied with each lamp；
5. 100% solid state cold ensures working properly in strong magnetic field.
Application:
Penetration testing, fluorescence detection;Biopolymers, fluorescence observation
Refrigerant leak detection;Engine oil leak detection
Criminal Investigation: fingerprints, blood observed
Fluorescence observation of ore;Detection of oil cleaning
