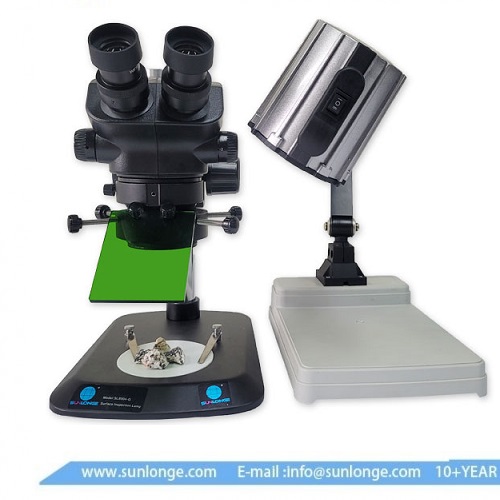

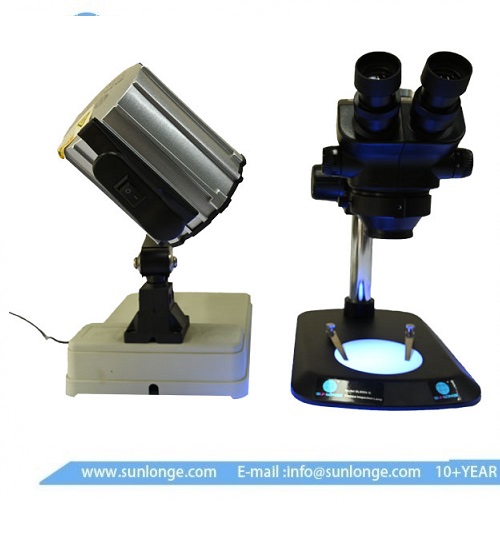

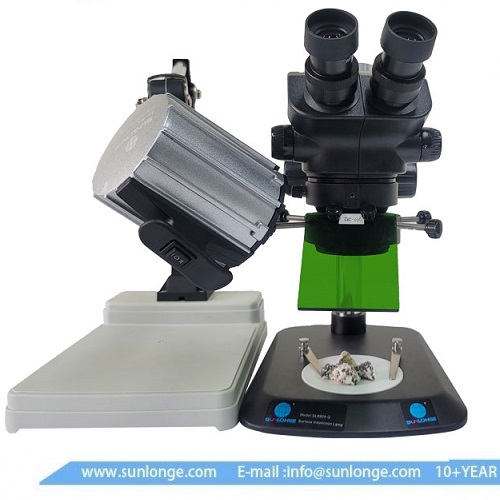

SLF 8806 dual-wavelength fluorescence excitation light source for stereo microscope

During the practical fluorescence excitation service, the protein excitation test can be completed under multiple wavelength, at least 2 different wavelength. We developed a series dual wavelength excitation light source. Adding our professional SL8806 excitation light source adapter, without destroying the existing stereo microscope, you can perform the protein excitation observation test.

SLF 8806 dual-wavelength fluorescence excitation light source for stereo microscope parameter

Model	SLF8806-UB	SLF8804-BG	Remark
LED No and specification	3PCS 5W365NM and 3pcs455NM LED	3pcs5W 455NM and 3pcs 525NM	Customization according to customer demand.
	365NM,395NM,455NM,525NM,595NM,625NM,6000K,Any 2 wavelength integration workable.
Illuminance(30CM)	28600uw/cm2-365NM 13500LX-455NM	13500LX-455NM 40000LX-525NM
Irradiated area(MM)	○220MM—525NM; ○180MM—595NM	○180MM—525NM; ○220MM—595NM

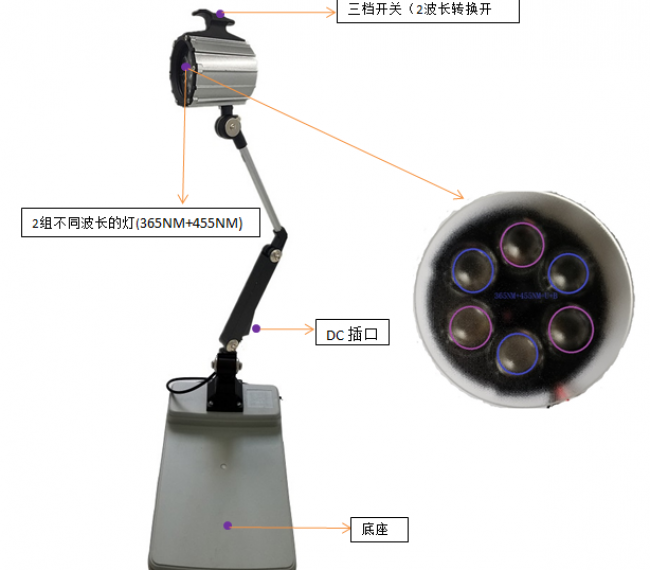

Switch	The switch on head controls the 2 wavelengths. Dimmer switch
Lifespan	30000H
Power supply	Dimmer (input 110-240V, Output ①-24V, 2A) Stepless dimming
Size and net weight	ABS+Aluminum alloy, size: 116*108mm180 * 190 * 106mm;   净重： 0.68KG

SLF8806 dual wavelength fluorescence excitation light source specification:

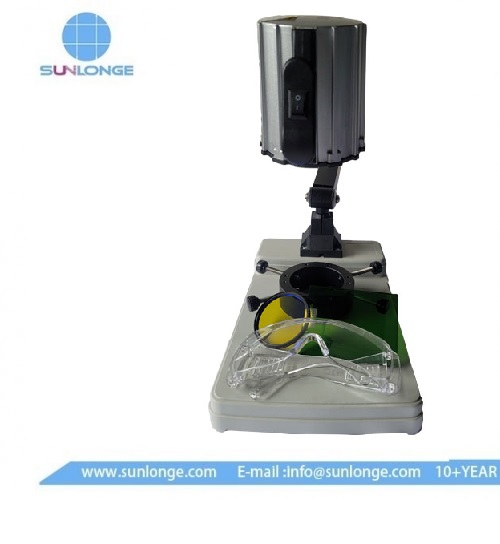

SLF8806 fluorescence light source adapter standard components:

1. Dual wavelength excitation light source SLF 8806, easy to carry.

2. SLF800 adapter ring for microscope, suitable for any stereoscope and filter.

3. Light modulator: a customize-design dimmer, can be adjust the brightness of excitation light source, from 0-100%,

4. Filter: Usually 3 different filter for your selection (SLF400-UV; SL500-blue light; SLF600-green light)

5. Observation filter: several different observation filter for your selection, SLFF400-ultraviolet; SLFF500—blue light; SLFF600—green light.

Fluorescence list and selection of various observation wavelength

UV: excitation wavelength 330nm~400nm emission wavelength: 425nm

Violet: excitation wavelength 395nm~415nm emission wavelength: 455nm

Blue: Excitation wavelength: 420nm~485nm Emission wavelength: 515nm

Green: Excitation wavelength: 460nm~550nm Emission wavelength: 590nm

Excitation light source code	Excitation wavelength	Emission wavelength	Observable fluorescence
365NM-U	365NM	425NM	DAPI
395NM-V	395NM	455NM	CFP,BFP
455NM-B	455NM	510NM	GFP,fluorescein
525-G	525NM	595NM	DsRed,TdTomato

SLF8806 series products abbreviation and code

SLF-8806XX

U: 365NM ultraviolet: V:395NM violet

B: 455NM blue light: G: 525NM green light

A: 595NM amber light: R: 625NM red light.

SLF8806 dual wavelength fluorescence excitation light source adapter advantage:

1. The SLF8806 dual wavelength fluorescence excitation light source adapter can provide

more complete solution for the existing microscope system. It can adapt (not convert) to any stereo microscope.

2. SLF8806 is with dual excitation wavelength. It can cover all the demand during the excitation service, providing more selection and solution for customers.

3. Stepless dimming function, the intensity of inspection lamp can be adjusted according to the test demand.
