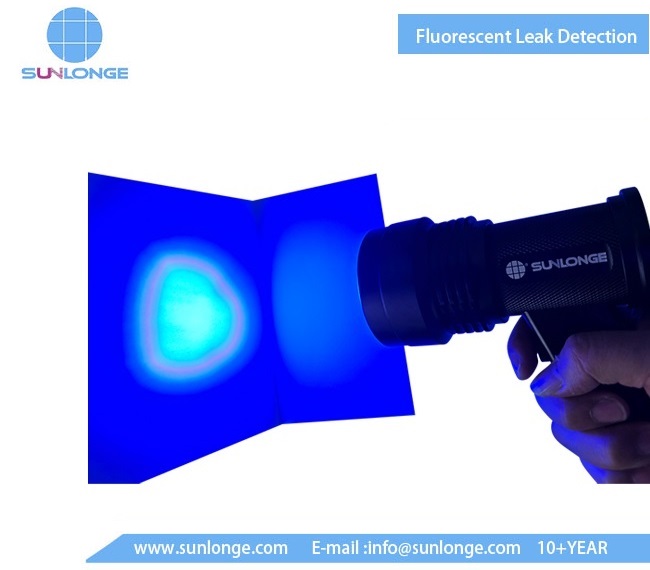

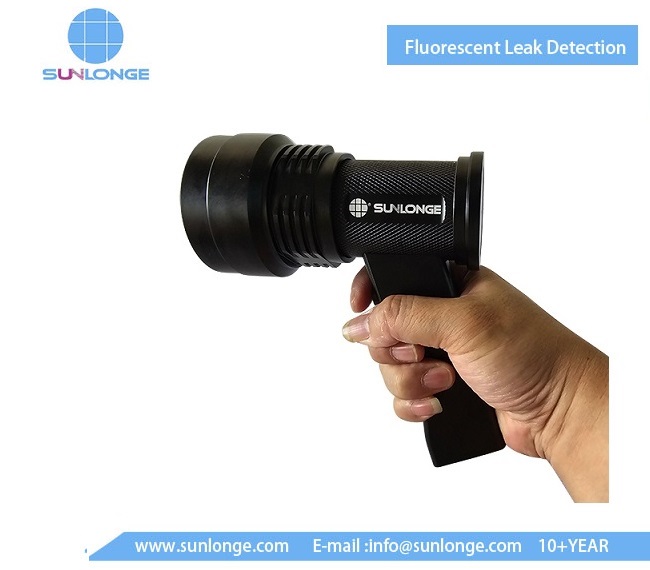

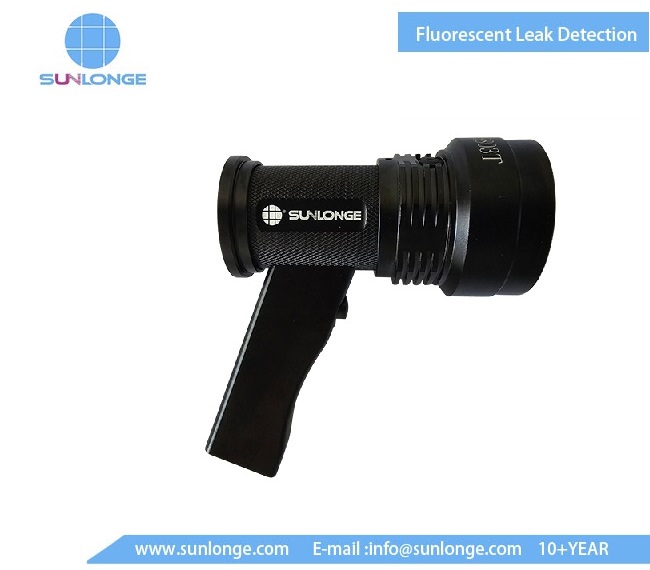

Hand-held portable UV leak detection light, hand-held UV LED lamp SL8803T series.
Hand-held portable UV leak detection light SL8803T series is with the most advanced LED cold light source technology. They are with imported 3 pcs 5-15W 365NM UV LED light source and optical lens. The LED lifespan can be up to 30 000H. UV intensity can be up to 20000-40000 uw/cm2. The highest intensity can be up to 40 000 uw/cm2. The irradiated area can be 160MM(30CM distance);Compact lamp head design, small cylinder body can be easily carried to the narrow space room, especially suitable for the fluorescent penetration testing and fluorescent magnetic particle testing on the ships, pressure vessels, fan blades and other special equipment. Hand-held design, tripod can be added, convenient for different scenarios of the testing; The filter interface on the lamp head; Customized filter can be added for some special requirements; just installed the filter directly on the lam head.
Specification：
SL8803T standard version: SL8803T-S；SL8803T High version: SL8803T-H
- Peak wavelength: 365NM-370NM
- UV intensity: 21000uw/cm2-(SL8803T-S); 38600uw/cm2-(SL8803T-H), We can customize it according to customer demand.
- UV LED Nos: 3 pcs 5W/15W 365NM UV LED, LED lifespan up to 30 000H.

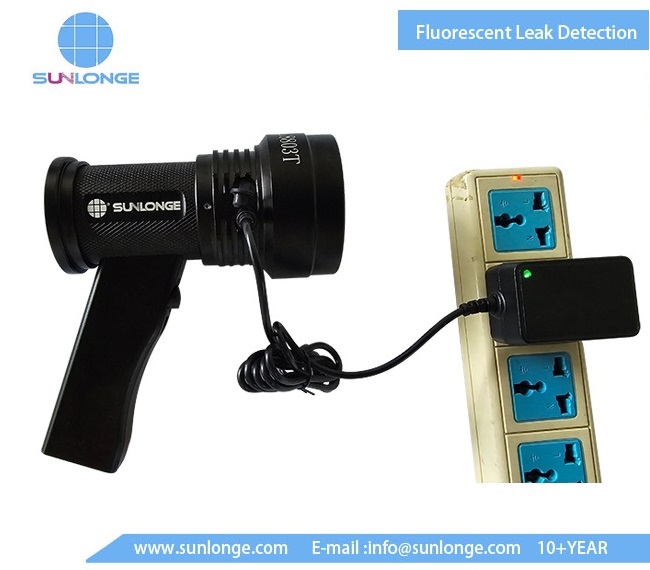

- Power supply: 100-240V AC/50HZ charger, Lithium-polymer battery pack.
- Irradiated area: 160MM at 30CM distance.
- Stability of UV intensity> 90%
- Product size: 69*136*158MM. Net weight: 0.78kg w/o accessory.
We master the core technology. We can customize the UV intensity according to customer demand.
| Product model | SL8803T-S | SL8803T-H |
| UV LED NOs | 3 pcs 5W 365NM UV LED | 3 pcs 15W 365NM UV LED. |
| UV intensity (30CM) | 21000uw/cm2 | 38600uw/cm2 |
| Inspection range | 6M | 10M |
| Irradiated area (30CM) | 160MM(Diameter) | |
| Power supply | Lithium-polymer battery pack, running time 3H | |
| Optional accessory | Fluorescent glasses, tripod, filter | |
Product features:
- UVA intensity up to 21 000- 40 000 uw/cm2 at 30CM distance, fulfill all kinds of industrial inspection request.
- Multiple optical lens technology, customize the leak detection lamp according to customer demand.
- Hand-held design, workable for tripod, fulfill different scenarios inspection; filter interface on the lamp head, filter can be added for special request.
