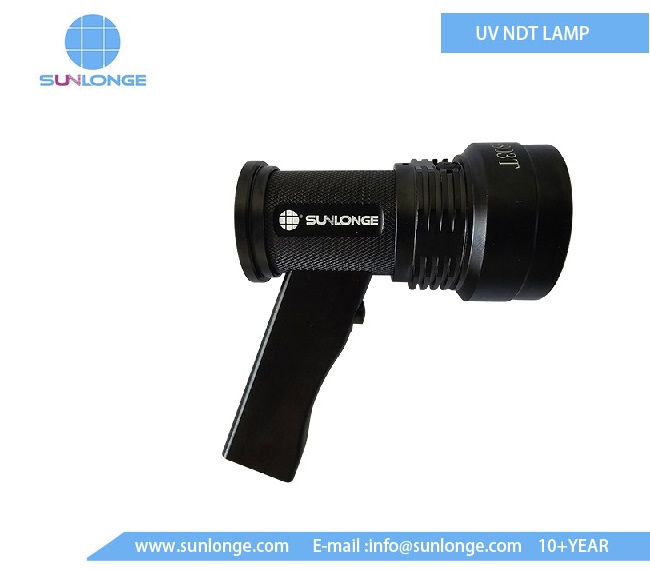

Hand-held portable UV NDT lamp, hand-held UV LED lamp SL8803T series.

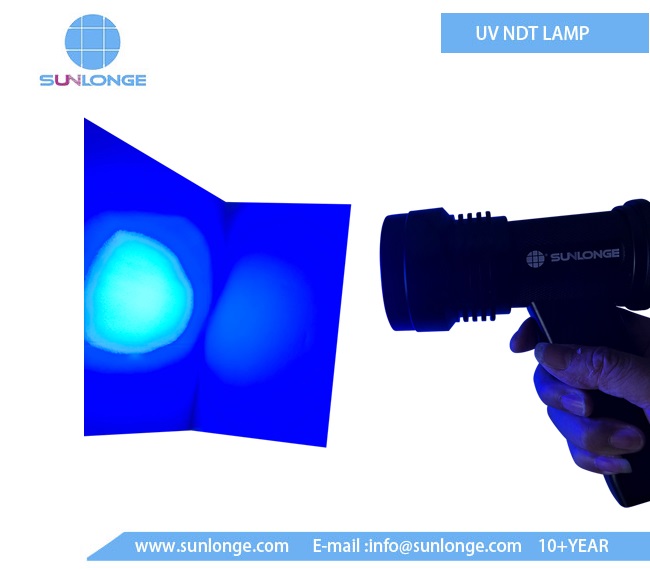

Hand-held portable UV NDT lamp SL8803T series is with the most advanced LED cold light source technology. It is with SVC and Nichia 5W-15W 365NM UV LED light source and optical lens. The LED lifespan can be up to 30 000H. UV intensity can be up to 4000-38600 uw/cm2. The irradiated area can be 160MM(38.1CM distance);Compact lamp head design, small cylinder body can be easily carried to the narrow space room, especially suitable for the fluorescent penetration testing and fluorescent magnetic particle testing on the ships, pressure vessels, fan blades and other special equipment. Hand-held design, tripod can be added, convenient for different scenarios of the testing; The filter interface on the lamp head; Customized filter can be added for some special requirements; just installed the filter directly on the lam head.
Specification:
Model:SL8803T standard version: SL8803T-S;SL8803T High version: SL8803T-H;SL8803T-Aerospace RRES 90061: SL8803T-AR;Abbreviation:SL8803T-H;SL8803T-S;SL8803T-AR
- Peak wavelength: 365NM-370NM
- UV intensity: 4 000uw/cm2-38600uw/cm2-(38.1CM distance), We can customize it according to customer demand.
- UV LED Nos: 3 pcs 5W/15W 365NM UV LED, LED lifespan up to 30 000H.

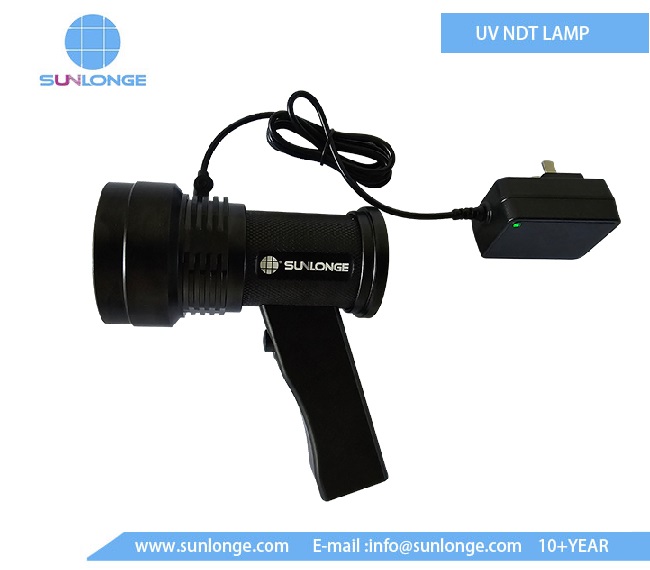

- Power supply: 100-240V AC/50HZ charger, Lithium-polymer battery pack.
- Irradiated area: 130-160MM at 30CM distance.
- Stability of UV intensity> 90%
- Product size: 69*136*158MM. Net weight: 0.78kg w/o accessory.
We master the core technology. We can customize the UV intensity according to customer demand.
| Product model | SL8803T-H | SL8803-S | SL8803-AR |
| UV LED NOs
|
3*15W 365NM UV LED | 3*5W 365NM UV LED | |
| UV intensity(38CM) | 38600uw/cm2 | 21000uw/cm2 | 4000uw/cm2 |
| Visible light emission |
No requirement |
< 1FC(10lux) with white light filters meet ASTM E3022 and RRES 90061 standard | |
| Irradiated area(38CM) | 130 mm(Diameter) | 160 mm(Diameter) | |
|
Power supply |
Lithium- polymer battery pack |
||
| Applied industry | Except Aeronautics NDT | All Aeronautics NDT | |
Note: SL8803T-AR version UV lamp, with optical coated filter to filter the visible light emission, meets ASTM E 3022, ASTM E 1444, ASTM E 1417 and Rolls-Royce RRES 90061 standard.
Product features:
- 3 pcs 5W-15W 365NM UV LED light source.
- SL8803T-AR complying with the ASTM E 3022, ASTM E 1444, ASTM E 1417 and Rolls-Royce RRES 90061 standard.
- 100% solid circuit ensures working properly in strong magnetic filed.

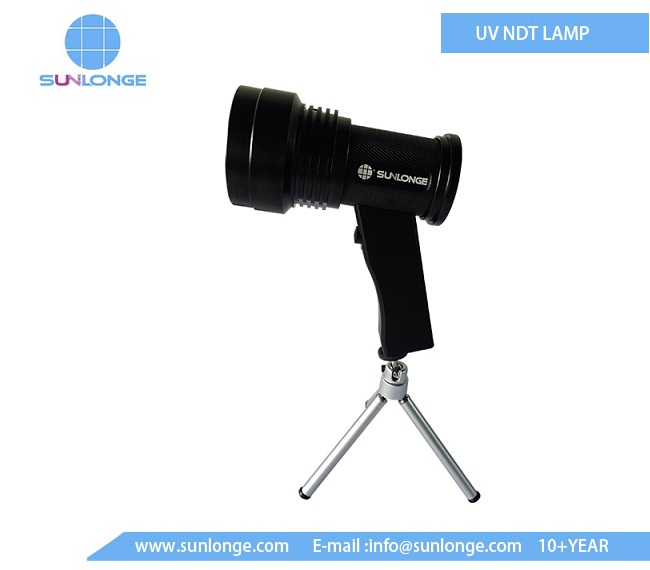

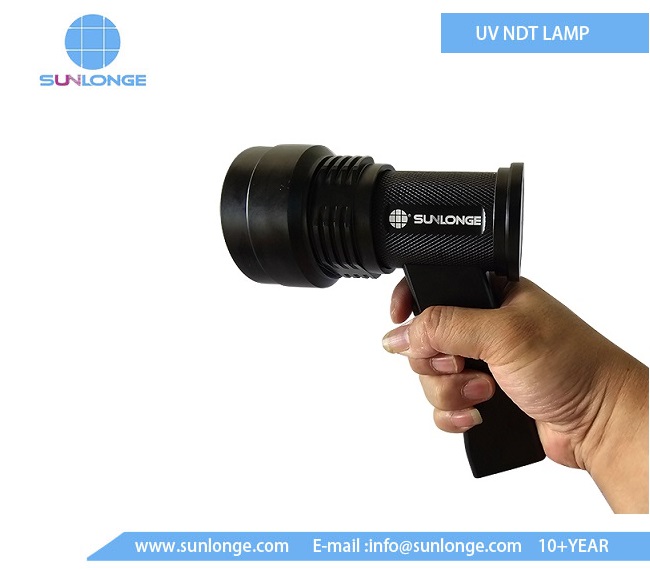

- Hand-held design, workable for tripod, fulfill different scenarios inspection; filter interface on the lamp head, filter can be added for special request.
Hand-held UV NDT lamp SL8803T standard packaging:
SL803T UV NDT lamp, charger, waterproof tool kit.
Hand-held UV NDT lamp SL8803T optional accessory:
Tripod, Spare UV filter glasses(orange or yellow), filter.
Hand-held UV NDT lamp SL8803T application:
Penetration testing, fluorescence detection;Biopolymers, fluorescence observation
Refrigerant leak detection;Engine oil leak detection
Criminal Investigation: fingerprints, blood observed, Fluorescence observation of ore;
Detection of oil cleaning
