Product description:(Pipelines Fluorescent Leak Dyes；Pipelines Fluorescent Leak Detection；)

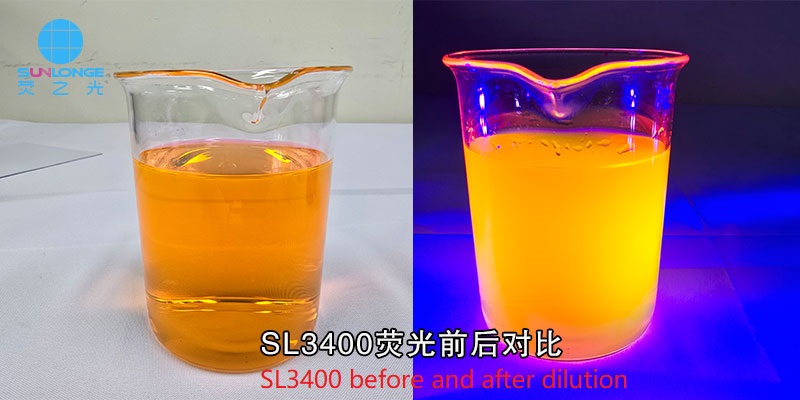

SL3400 Water soluble fluorescent green tracer dye is a concentrated water-soluble fluorescent tracer dye containing styrene derivative. The product is orange transparent liquid after dilution, and is fluorescent orange under UV light.The product is very good at acid resistance and can be excellent fluorescent properties even at lower or higher PH values; excellent sunlight fastness and fastness to acids/alkali fastness.
SL3400 Water soluble fluorescent Yellow tracer dye typical property
| Content | Data |
| Suitable wavelength for fluorescence inspection. | 365NM |
| Typical usage ratio(L) | 0.3—1.0ml |
| Solubility(Petroleum products) | Insoluble |
| Solubility (Water) | Fully dissolved |
| Density（20 °C） | 1.01—1.13 |
| Flash Point | >100°C (212°F) |
| Ionic | Anionic |
| Stickiness（25C，mPa.S） | ≤60 |
| Seal Material Compatibility | All rubber, plastic and metal parts (including concentrated and diluted dye) |
SL3400 Water soluble fluorescent Yellow tracer dye recommended use level:
The following recommended dosing amounts are starting dosing amounts for typical applications, but the true dosing amount depends on:
UV intensity, fluorescent intensity, background color of the system being spiked, desired fluorescent intensity, and light intensity of the work environment.
Water: 300-500 ppm Antifreeze: 500-1000 ppm The addition ratio is: 1-1.5/3000: that is, 1/3000 or 1/2500 (that is, 1 liter of tracer dye can be mixed with 2500 liters or 3000 liters of water; the price of the tracer dye depends largely on the concentration ratio, SL3300 is a super-concentrated tracer.
Application:–Pipelines Fluorescent Leak Dyes；Pipelines Fluorescent Leak Detection；
- Leak detection of roofs/Terraces/Balconies/Floors ects.
- Leak and infiltration detection of buildings • Water flow testing of wastewater, rainwater and industrial water.
- Agricultural simulation of diffusion • Search for hydraulic connections between the natural environment and building.
- Search for leaks in civil engineering: dams, dykes, reservoirs • Search for water infiltration in floors, walls and ceilings.
- Visual identification and detection of buried pipe connections • Chemical simulation of product dispersion.
- Leak detection in underfloor heating, glycol cooling circuits • Leak detection in storage tanks.
How to select the fluorescent color(Water soluble tracer dye)
SL3300:fluorescent/Green-green ; SL3400:fluorescent/Yellow-yellow; SL3500:fluorescent Prune-PruneSL3000: fluorescent UV tracer dye-Azure
