Product description:
Pipelines Fluorescent Leak Dyes；Pipelines Fluorescent Leak Detection；

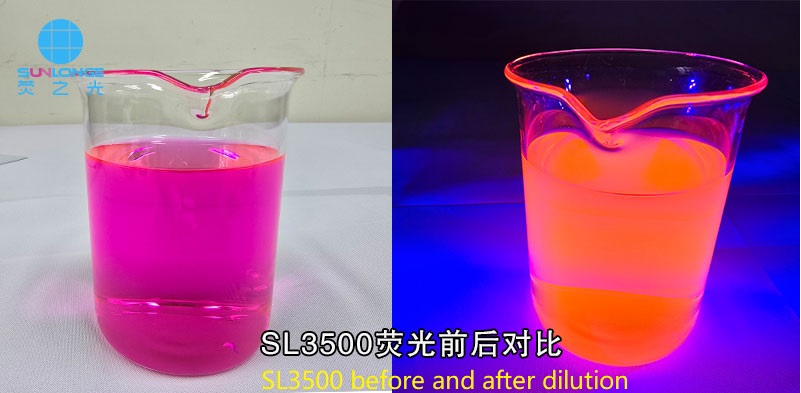

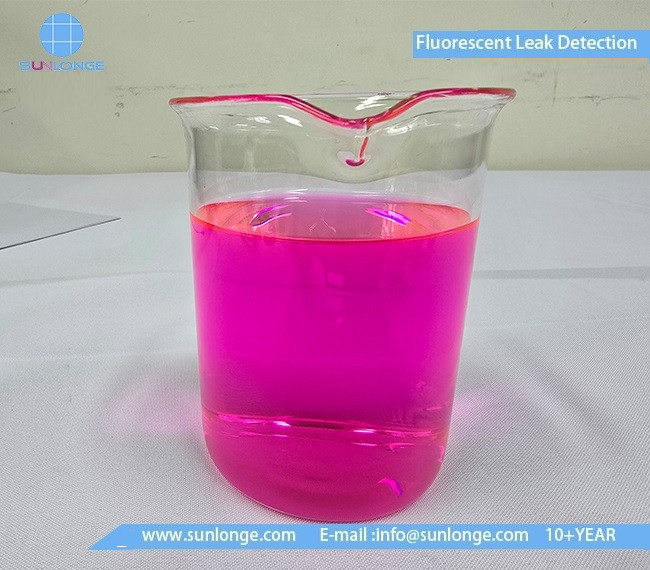

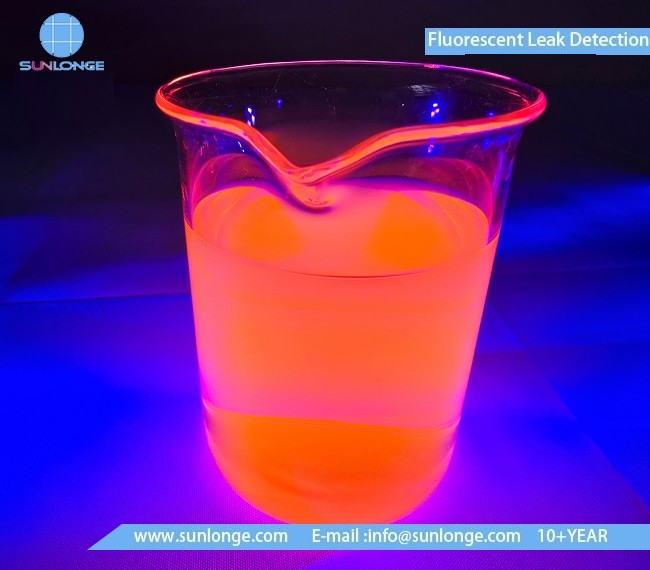

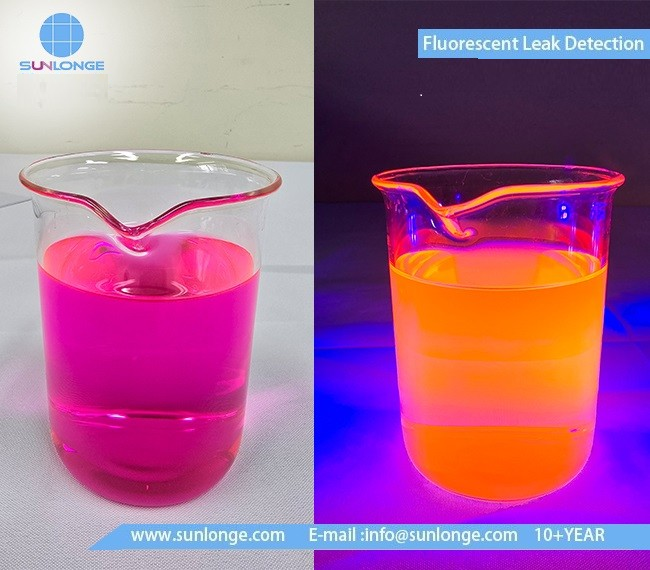

SL3500 Water soluble fluorescent green tracer dye is a concentrated water-soluble fluorescent tracer dye containing styrene derivative. SL3500 is a purplish-red liquid when diluted, and is fluorescent purplish-red under UV light. SL3500 is a purplish-red liquid when diluted, and is fluorescent purplish-red under UV light. The product is very good at acid resistance and can be excellent fluorescent properties even at lower or higher PH values; excellent sunlight fastness and fastness to acids/alkali fastness.
SL3500 Water soluble fluorescent dye tracer dye typical property
| Content | Data |
| Suitable wavelength for fluorescence inspection. | 365NM |
| Typical usage ratio(L) | 0.3—1.0ml |
| Solubility(Petroleum products) | Insoluble |
| Solubility (Water) | Fully dissolved |
| Density（20 °C） | 1.10-1.13 |
| Flash Point | >100°C (212°F) |
| Ionic | Anionic |
| Stickiness（25C，mPa.S） | ≤60 |
| Seal Material Compatibility | All rubber, plastic and metal parts (including concentrated and diluted dye) |
SL3400 Water soluble fluorescent Yellow tracer dye recommended use level:
The following recommended dosing amounts are starting dosing amounts for typical applications, but the true dosing amount depends on:
UV intensity, fluorescent intensity, background color of the system being spiked, desired fluorescent intensity, and light intensity of the work environment.
Water: 300-500 ppm Antifreeze: 500-1000 ppm The addition ratio is: 1-1.5/3000: that is,1/2000 (that is, 1 liter of tracer dye can be mixed with 2000 liters of water; the price of the tracer dye depends largely on the concentration ratio, SL3500 is a super-concentrated tracer.
Application:(Pipelines Fluorescent Leak Dyes；Pipelines Fluorescent Leak Detection；)
- Leak detection of roofs/Terraces/Balconies/Floors ects.
- Leak and infiltration detection of buildings • Water flow testing of wastewater, rainwater and industrial water.
- Agricultural simulation of diffusion • Search for hydraulic connections between the natural environment and building.
- Search for leaks in civil engineering: dams, dykes, reservoirs • Search for water infiltration in floors, walls and ceilings.
- Visual identification and detection of buried pipe connections • Chemical simulation of product dispersion.
- Leak detection in underfloor heating, glycol cooling circuits • Leak detection in storage tanks.
How to select the fluorescent color(Water soluble tracer dye)
SL3300:fluorescent/Green-green ; SL3400:fluorescent/Yellow-yellow; SL3500:fluorescent Prune-PruneSL3000: fluorescent UV tracer dye-Azure
