Super The viper SL8300-UV adjustable-light beam UV LED Flashlight
SPECIFICATIONS:
Model: Super The viper SL8300-UV adjustable-light beam UV LED Flashlight
(Abbreviation The viper SL8300-UV)
Peak-Wavelength:365-370NM;
UV Intensity: 1000-45000UW/cm2 at 15inch(380mm) -See the list;Low visible light emiss ion:less than 2 foot-candles (22 lux)
Number of UV LEDs: 1 x 5W 365NM UV LED with lens, average LED life is 30,000 hours
Power supply: 3.7V 4800 Mah 26650 lithium battery;
Operating Time: 4 hours (continuous)
Irradiated Area in 38cm Distance: Ø 100-250mm-See the list.
Stability of UV Intensity: > 90%
Product Size: 216*46mm ; WEIGHT :328 g without accessories
Super The viper SL8300-UV Flashlight can adjustable-light beam from spotlight to floodlight ,so UV Intensity:1000-45000UW/cm2 at 15inch(380mm)
Radiation cone XL (Ø 250 mm): 20000μW/cm2
Radiation cone L (Ø 150 mm): 35000 μW/cm2
Radiation cone M (Ø 100 mm): 45000 μW/cm2
SL8300 Series:SL8300-Hight VersionSL8300–Standard Version;SL8300-Aerospace RRES90061;
Abbreviation:SL8300-H,SL8300-S;SL8300-AR (We master the core technology, We can adjust the UV intensity according to customer requirements)
|
Model |
SL8300-Aerospace RRES90061 |
SL8300-Standard Version |
SL8300-Hight Version |
|
Number of UV LEDs |
1 x 5W 365NM UV LED,Optical lens + filter |
1 x 5W 365NM UV LED,Optical lens + filter |
1 x 5W 365NM UV LED,Optical lens |
|
UV Intensity at 15inch(380mm) |
3500/cm2 (1000-3500uw/cm2) |
25000uw/cm2 (1000-25000uw/cm2) |
45000uw/cm2 (1000-45000uw/cm2) |
|
Visible light emission |
< 0.5 FC(5 lux) |
< 2 FC(20 lux) with black light filters |
No filters
|
|
Irradiated Area in 38cm Distance |
210mm(Diameter) |
100-210mm(Diameter) |
100-210mm(Diameter) |
|
Power supply |
Polymer battery pack DC |
The Same |
The Same |
|
Suitable for industry |
All Aeronautics NDT |
Except Aeronautics NDT |
Except Aeronautics NDT |
Attention to:
SL8300-Aerospace RRES90061 Meets Rolls-Royce RRES 90061 Requirements,
ASTM E1417, ASTM E1444, ASTM E 709, ASTM E2297, ASTM E3022 compliant
FEATURES:
Super The viper SL8300-UV adjustable-light beam UV LED Flashlight from spotlight to floodlight
1. Super The viper SL8300-UV adjustable-light beam UV LED Flashlight provides maximum UV-A performance immediately after switch-on and is especially suited for quick inspections or checks of poorly accessible areas.
2. The high spotlight radiation intensity of the Super The viper SL8300-UV, a high fluorescence stimulation can be achieved – this way, even minor so high that even low luminance traces are clearly visible even in daylight.
3. In contrast to conventional UV torches, Super The viper SL8300-UV can not only be used in spotlight mode: An integrated focus ring enables the infinitely variable regulation of the UV-A radiation cone from spotlight to floodlight. This variable focal length adjustment allows a very wide range of applications of Super The viper SL8300-UV .
4. Whether spot light with maximum fluorescence excitation or flood light for a quick examination of larger areas – with just a twist of the focus ring of this ultra compact UV-A hand lamp you always have the optimum light intensity for each task.
5.Whether for leak detection in buildings, some areas of forensics, or non-destructive testing of materials in the industry – the rapidly deployable Super The viper SL8300-UV the user a high degree of flexibility .
STANDARD PACKAGE INCLUDING:

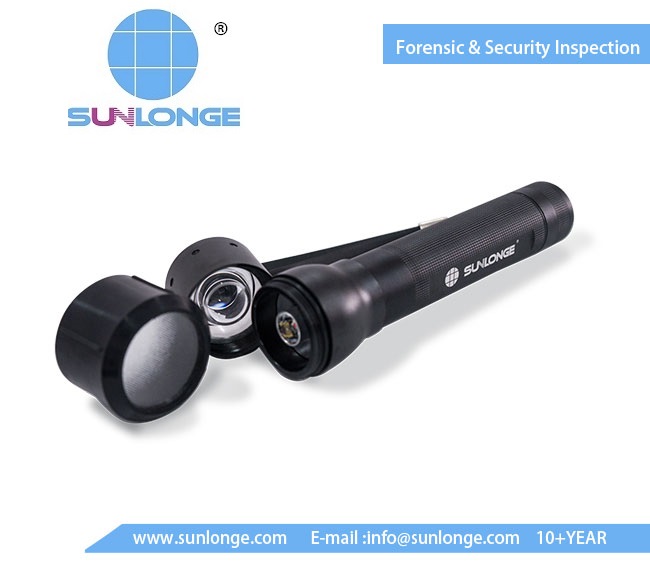

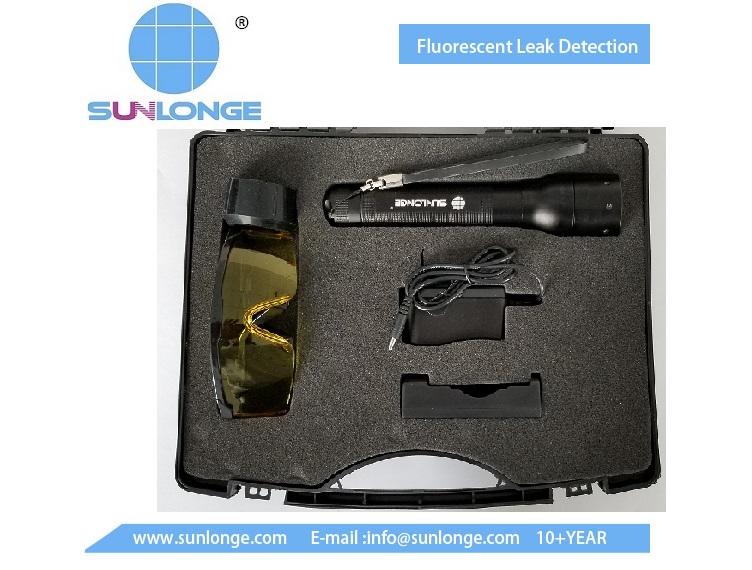

Super The viper SL8300-UV Flashlight, Charger, carry case; Spare UV Filter Glasses;
Application:
Penetration testing, fluorescence detection, Biopolymers, fluorescence observation,
Refrigerant leak detection, Engine oil leak detection;Criminal Investigation: fingerprints, blood observed,
Fluorescence observation of ore, Detection of oil cleaning
Main purposes:
Fluorescence detection: iron and steel, non-ferrous metals, automobiles, aircraft, fluorescent penetrant inspection, fluorescent magnetic particle inspection,
Pollution check: electronic components, boards, dust inspection, LCD panel, checked into the clean room,
Leak Check: hydraulic machines, sump, pipe and other oil spill inspection, leak detection using fluorescent agents,
Degreasing cleaning validation: the food industry, kitchen, cooking utensils, tableware degreasing cleaning
