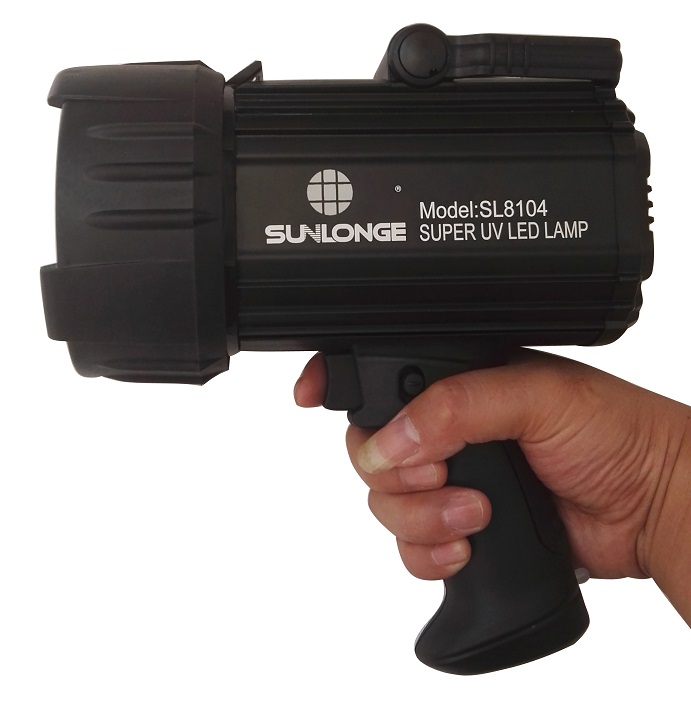

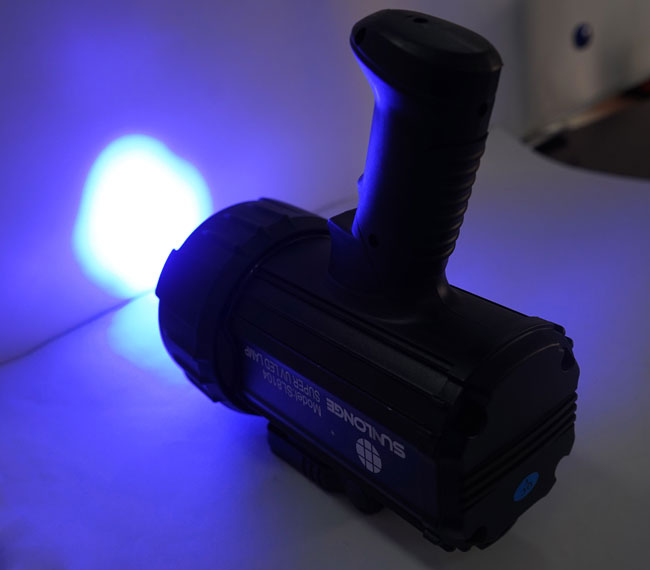

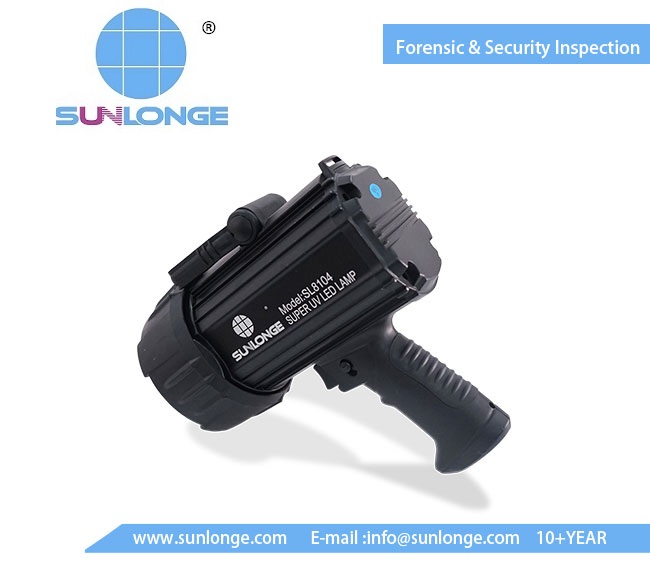

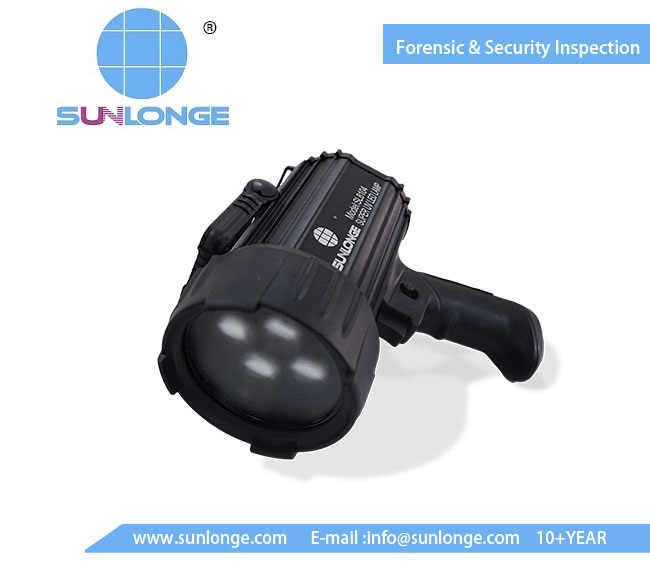

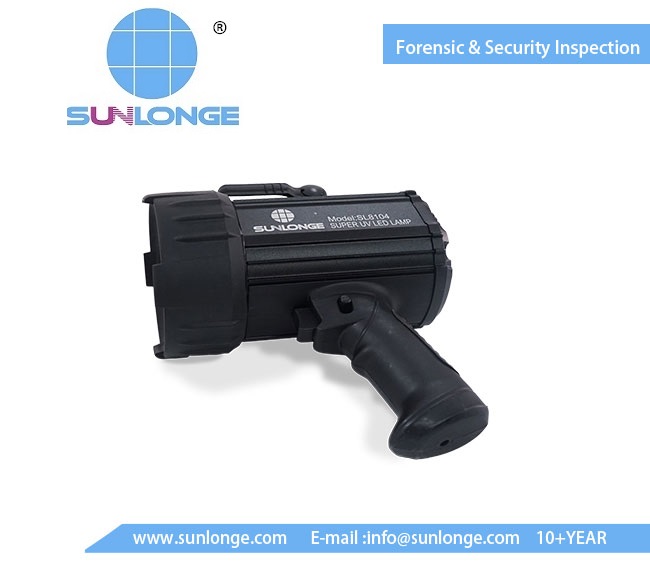

SUPER UV LED LAMP SL8104 Series
Super UV LED LAMP SL8104 Series adapts the most advanced LED cold light source technology,they uses Nichia 5 Watt 365nm of NCSU033B(T) and Optical lenses.The LED life is 30,000 hours.
UV-A Intensity is 15000UW/cm2 in 38cm Distance. Ergonomic design reduces the operator stress, 4x SPOT 365 nm uv led with reflection mirrow universal module design for AC and DC operation simple operation
SPECIFICATIONS:
Model: SUPER UV LED LAMP SL8104 Series;SL8104-Hight Version;SL8104-Standard Version;SL8104-Aerospace RRES90061 Abbreviation:SL8104-H;SL8104-S;SL8104-AR
（The Original Model:SL8104-21K,13K,5K）
Peak-Wavelength:365-370NM;
UV Intensity:4000-21000UW/cm2 at 15inch(380mm) -See the list;
Low visible light emission :less than 2 foot-candles (22 lux)
Number of UV LEDs: 4 x 5W 365NM UV LED with lens, average LED life is 30,000 hours
Power supply: 100-240 universal chargers AC/50HZ; Polymer battery pack DC.
Irradiated Area in 38cm Distance:150*180mm
Stability of UV Intensity: > 90%
Product Size: 220*210*110mm ; WEIGHT :980g without accessories
SL8104 Series:SL8104-Hight Version;SL8104-Standard Version;SL8104-Aerospace RRES90061 Abbreviation:SL8104-H;SL8104-S;SL8104-AR（The Original Model:SL8104-21K,13K,5K）
(We master the core technology, We can adjust the intensity of the UV according to customer requirements requirements)
|
Model |
SL8104-Aerospace RRES90061 |
SL8104-Standard Version |
SL8104-Hight Version |
|
Number of UV LEDs |
4 x 5W 365NM UV LED |
The Smae |
The Same |
|
UV Intensity at 15inch(380mm) |
4000-5000uw/cm2 |
13000uw/cm2 |
21000uw/cm2 |
|
Visible light emission |
< 0.5 FC(5 lux) |
< 2 FC(20 lux) with black light filters |
< 2 FC(20 lux) with black light filters |
|
Irradiated Area in 38cm Distance |
180*260mm |
130*180mm |
120*160mm |
|
Power supply |
Polymer battery pack DC |
The Same |
The Same |
|
Suitable for industry |
All Aeronautics NDT |
Except Aeronautics NDT |
Except Aeronautics NDT |
Attention to SL8104-Aerospace RRES90061 Meets Rolls-Royce RRES 90061 Requirements
ASTM E1417, ASTM E1444, ASTM E 709, ASTM E2297, ASTM E3022 compliant
Meets ASTM UV-A intensity and wavelength specifications for FPI and MPI.
FEATURES:
1. 5W 365NM NICHIA True 365 nm wavelength UV light;
2. Less than 2 FC Candles of white Light;
3.Instant On/Off, no warm up or cooling down time;
4. No filter or bulbs to replace; Mercury free;
5. 100% solid state cold ensures working properly in strong magnetic field.
STANDARD PACKAGE INCLUDING:
SUPER UV LED LAMP SL8104, Charger, carry case;
OPTIONAL ACCESSORIES:
Spare UV Filter Glasses ( orange or yellow); Optical lenses ABS protection case with form inside
Application:
Penetration testing, fluorescence detection;Biopolymers, fluorescence observation
Refrigerant leak detection;Engine oil leak detection
Criminal Investigation: fingerprints, blood observed
Fluorescence observation of ore;Detection of oil cleaning
